Clinical

Surgical Tables

Leading the way in efficiency, positioning and patient safety.
Skytron Surgical Tables were designed with end-users in mind and to handle the many challenges you face in the OR. Our portfolio includes imaging, top slide, and top rotation surgical tables with our low profile base that help eliminate risky maneuvers with patients and provide better access for surgeons during operation.
Download Brochure

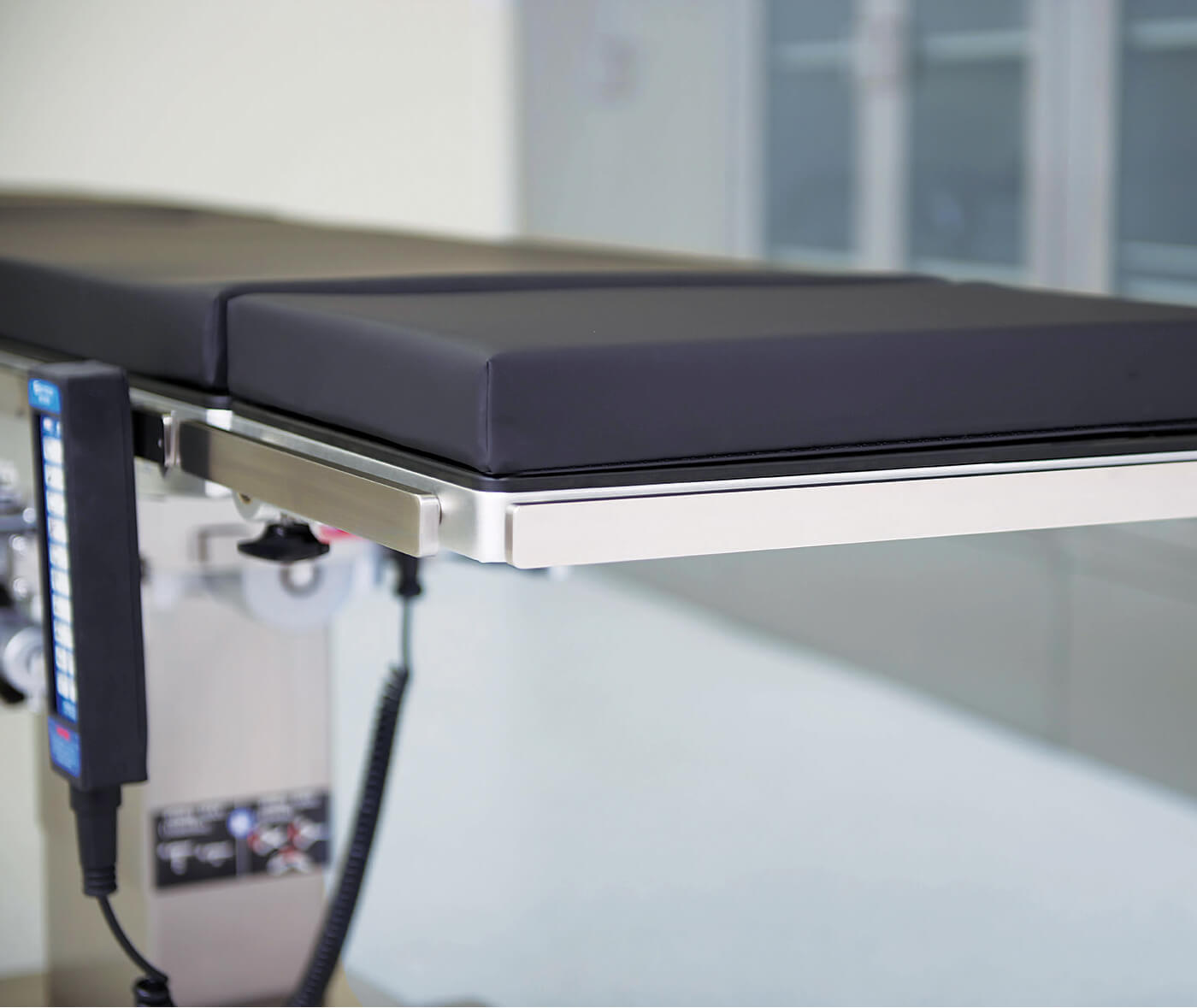

Skytron surgical table reclining controller close up

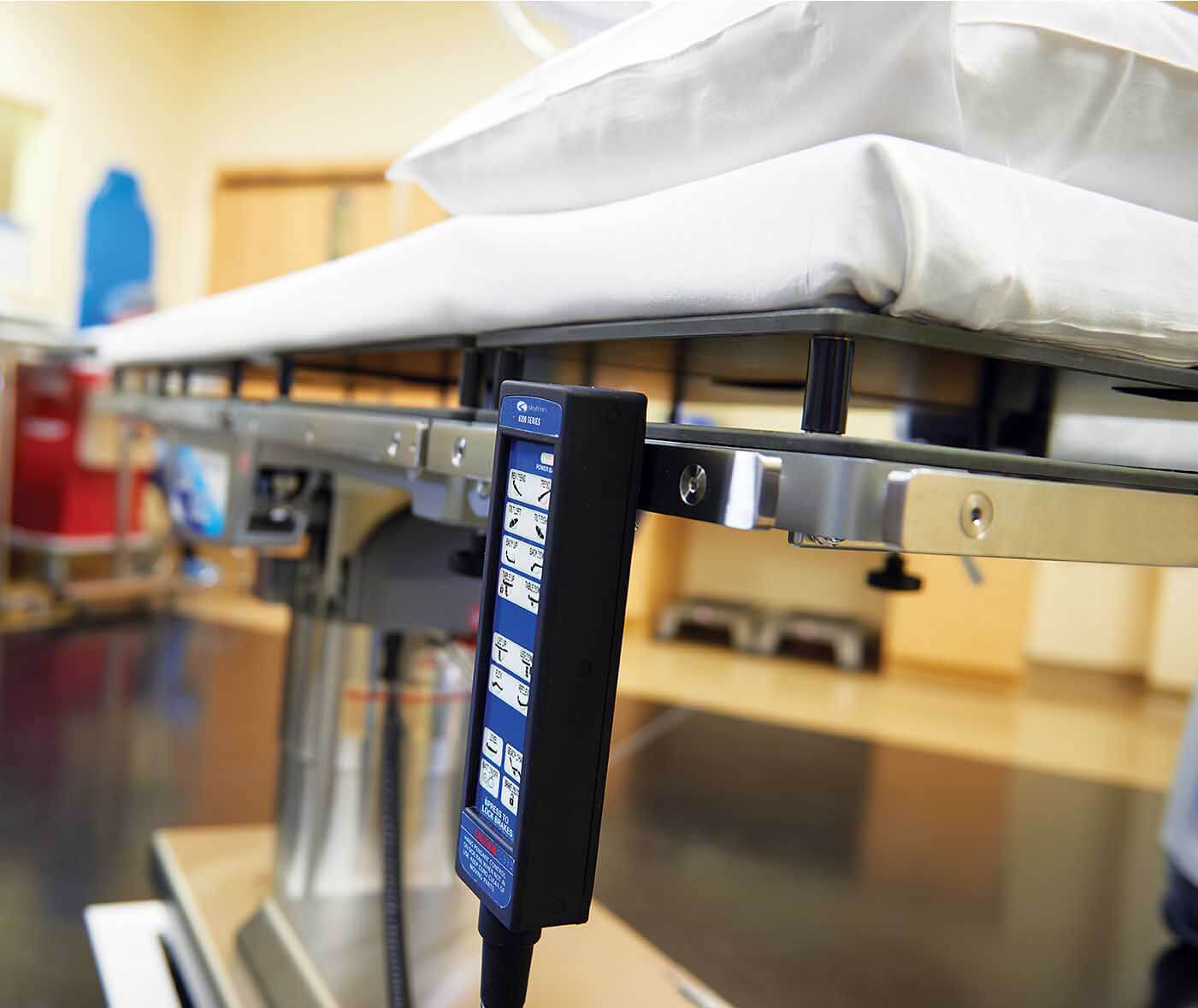

Skytron surgical tables reduce risky maneuvers with patients and provide better access for surgeons during operation
Specifications 3008 Clarity3603 Ultra Slide3503 EZ Slide6702 Hercules6302 Elite
Max. Permissible Load Lift500 lb1000 lb700 lb1200 lb1000 lb
Max. permissible Load Articulation500 lb (top slide)800 lb600 lb1000lb600 lb
Top Rotationn/an/an/a210°210°
Total Slide 28" longitude 8" latitude 26"21"n/an/a
Top Slide/Head n/a10"7.7"n/an/a
Top Slide/Foot n/a16.5"13.2"n/an/a
Leg Up/Down n/a15°/100° 0°/98°20°/100° 20°/100°
Flex/Reflex n/a40°/90°40°/90°40°/90°40°/90°
Head Sectionn/a60° up/90° down60° up/90° down60° up/90° down60° up/90° down
Removable Sections n/aHead +Leg + BackHead + LegHead + Leg + BackHead + Leg
Length without Head Section n/a69.29" (1759 mm)69.45" (1764 mm)66.75" (1665 mm)65.5" (1650 mm)
Length with Head Section 83" (2108 mm)81.89" (2080 mm)82.05" (2084 mm)79" (2006 mm)78.125" (1980 mm)
Width (Back/Seat Section) 19.69" (500 mm) 19.625" (500 mm)19.625" (500 mm)19.625" (500 mm)19.625" (500 mm)
Width with Side Rails (Back/Seat Section) 21.81" (554 mm)21.875" (555 mm)21.875" (555 mm)21.875" (555 mm)21.875" (555 mm)
Height29.13" (734 mm) - 41.73" (1059 mm)20.5" (520 mm) - 39.5" (1000 mm)25" (635 mm) - 43" (1092 mm)23.626" (600 mm) -41.5" (1054 mm)25" (634 mm) - 39.875 (1012 mm)
Lateral Tilt (L/R) 20°35°20°30°30°
Trendelenburg / Reverse Trendelenburg 20°/20°40°/30°30°/30°30°/30°30°/30°
Kidney Bridge n/a5.9" (150 mm)5.9" (150 mm)5.9" (150 mm)4" Manual
Back Up/Downn/a90°/ 40°90°/ 40°90°/ 40°90°/ 40°
